Description
Used concrete stone production Schlosser Type: SP 3000
consisting of :
Pos. 1

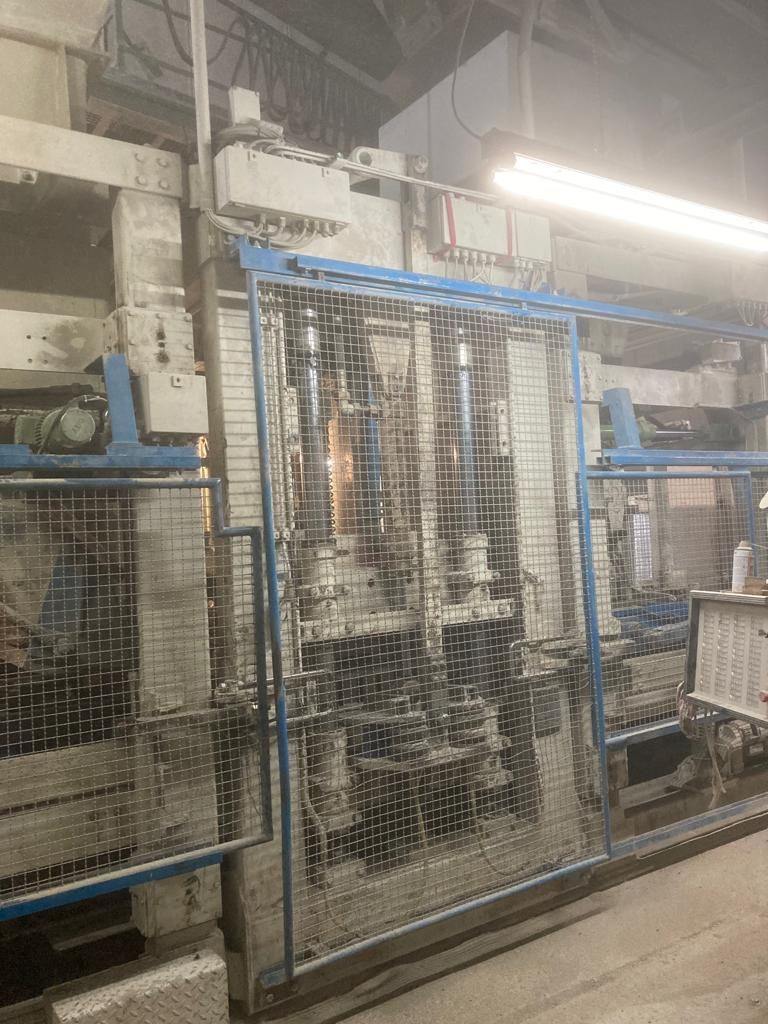

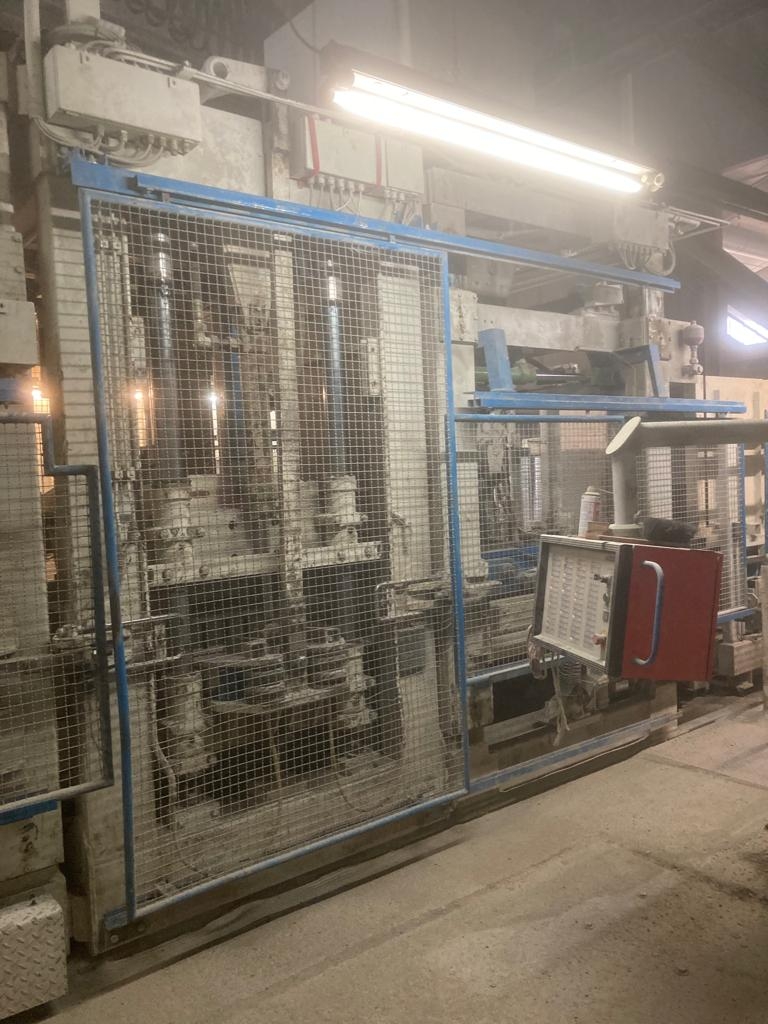

Stone shape machine Fabr. Schlosser Type SP 3000 Backmix and Facemix Year 1998
Board size 1400 x 800 mm
Servo Vibrations system Schlosser
Control SIMATIC S 7
Pos. 2
Progress up to HUCHADER
Eleveter Fabr. Schlosser
16 floors double base base distance 300 mm board size 1400 x 800 x 45 mm
Pos. 3
Finger Car Fabr. SFH without a turntable with support arm adjustment board size 1400 x 800 x 45 mm
16 floors double base
Floor distance 300/600 mm board size 1400 x 800 mm
Picking away Starting stage with measuring leash
Removing Recording Oberwagen with measuring line
Data transmission optically
Control SIMATIC S 7
POS .4
Drying chamber Fabr. Rotho
Floor distance 300 mm
Number of chambers 8
Chamber capacity total 4096 pcs.
Pos. 5
Lowerator : Fabr. Schlosser16 floors double base base distance 300 mm board size 1400 x 800 x 45 mm
Pos. 6
Transport from the Lowerater to the packageer:
Pos. 7
Stone release
Pos. 8
Stone dopper
Pos. 9
Packinger manufacturer. Schlosser 4 pages hydraulic
Pos. 10
Board turner
Pos. 11
Board transport
Pos. 12
Board buffer
Pos. 13
Board stacking in front of the machine.
Pos. 14
Transport to remove the products.
Pos. 15
ca. 2500 pcs. Plastic boards 1400 x 800 mm
Pos. 16
1 strapping horizontally Fabr. Strapex
Pos. 17
1 strapping vertical fabr. Strapex
Mixing system:
Pos. 1
1 pc. Mixer for Backmix and Facemix 1 m³ of fixed concrete
