Description
VIHY Rimamat pipe plant manufacture in 1995.

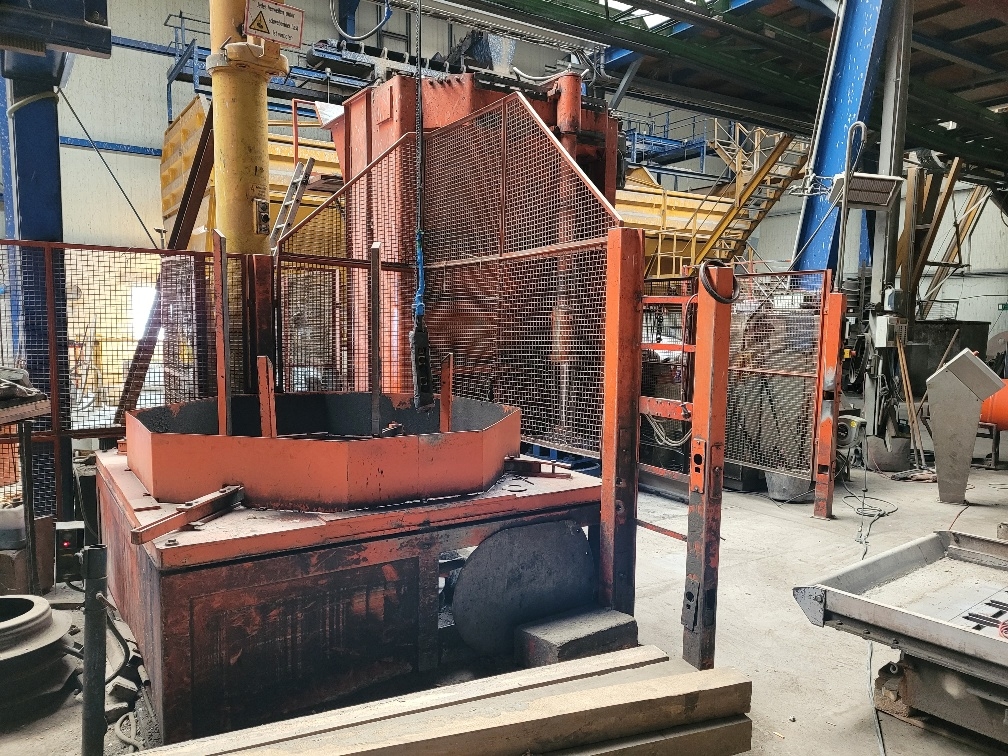

The Rimamat plant is fully automated for the production of circular or pre-bedded concrete
pipes from ø 300 mm to ø 1250 mm in lengths of 2,0 m. The machine is in good condition
and is very versatile. It can also produce manhole sections and cones.
SCOPE OF SUPPLY:
? Rimamat complete Plant.
? Pallet automation with oiling of pallets.
? Filling box with distributor device.
? 2 V 30S-40 Stepless hydraulic vibrator control.
? Pipe transport truck, electrical.
? Quick mould change.

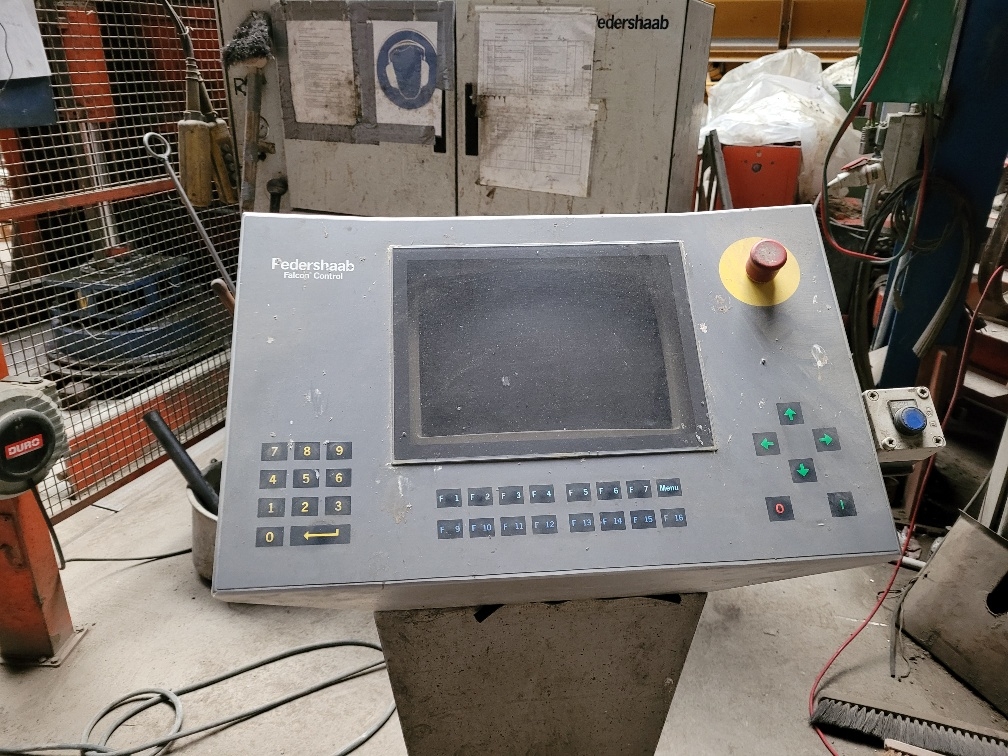

? Falcon computer control.
Dialog/Menu.
Machine setting.

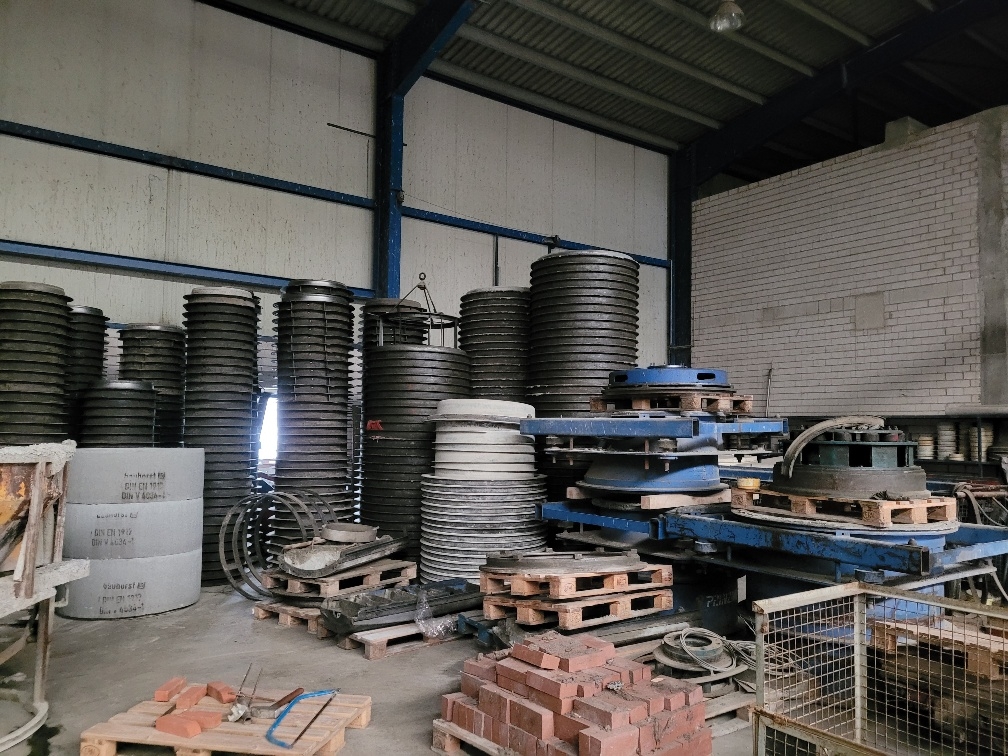

MOULD EQUIPMENT FOR PIPES WITH PREBED.
? Ø 300 mm,
? Ø 400 mm,
? Ø 500 mm,
? Ø 600 mm,
? Ø 700 mm,
? Ø 800 mm,
? Ø 1000 mm.
? Lengths 2,0 m.
? Pallets, set rings and other accessories included.
MOULDEQUIPMENT FOR MANHOLE SECTIONS AND CONES
? Ø 1000 mm x 250 mm.-1000 mm sections.
? Ø 1000 mm x 600 mm – 1100 cones.
? Ø 1000 mm cone part.
? Pallets, set rings and other accessories is included.
The machine can produce 2 pipes from Ø 300 mm and up to Ø 600 mm, and 1 pipe from
Ø 700 mm and up to Ø 1200 mm.
